Trying out an example

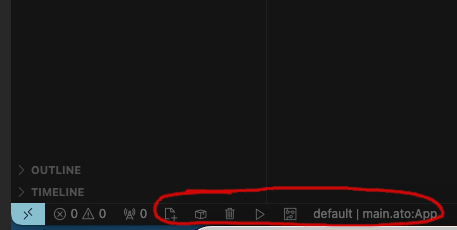

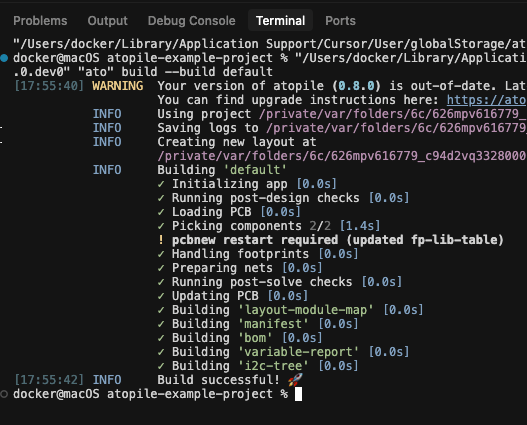

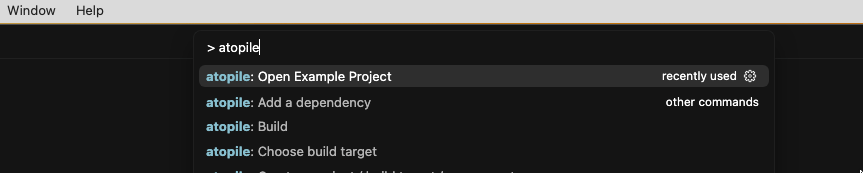

Press Ctrl+Shift+P and search for atopile: Open Example. open example Choose any example you like from the selection. After confirming wait for the ato menu bar to appear: ato menu bar Press on the play button to compile the example. You will be greeted by the logs in the terminal: compile example If you have KiCAD installed, you can now press on the PCB icon in the ato menu bar to open the layout file.

​
What’s next?

In the Essentials tutorial we continue with a real circuit, installing and using packages, maths and version control.
